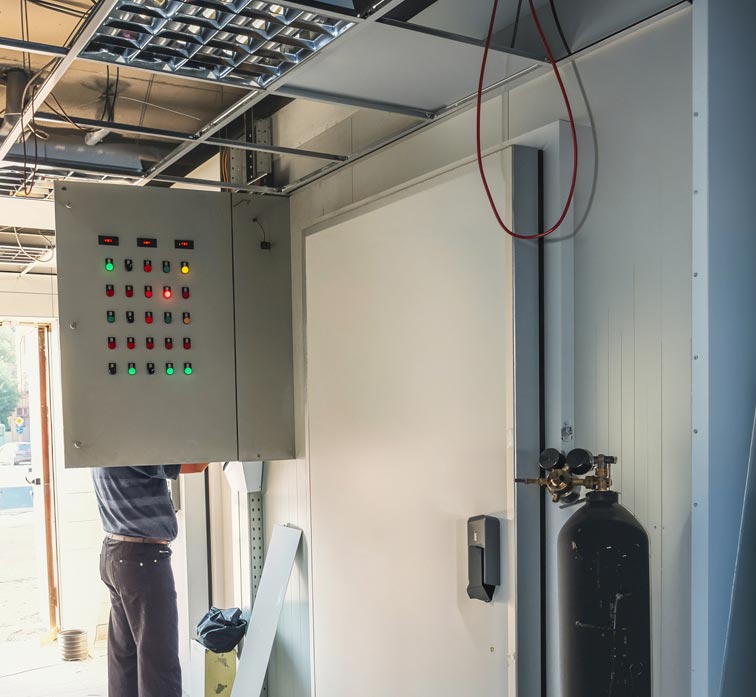

Dedicated Commercial Equipment Connections
Commercial buildings depend on equipment designed for specific tasks, and many of these machines require an equally specific electrical system: dedicated commercial equipment connections and a dedicated electrical circuit.
At Pinellas County Electric, we install dedicated equipment circuits for commercial properties throughout Clearwater, St. Petersburg, Largo, Pinellas Park, and the surrounding Pinellas County area. We work with restaurants, automotive shops, warehouses, manufacturing facilities, offices, retail stores, medical facilities, commercial kitchens, and professional spaces, acting as a force for good in providing a wide range of electrical collections and setup to meet diverse needs, including dedicated financial GBC requirements.
You cannot assume there is enough power simply because an outlet is nearby. Adding a machine to whatever circuit is convenient often leads to tripped breakers, equipment shutdowns, overheated wiring, and severe electrical hazards. When commercial equipment requires a dedicated circuit, it must receive the exact power specification it was engineered to take.
Key Takeaways
Targeted Power
A dedicated equipment circuit supplies electrical power exclusively to one specific piece of commercial equipment or appliance.
Voltage & Phase Range
Commercial loads may require 120V, 208V, 240V, 277V, or 480V single-phase or 3-phase circuits.
Diverse Applications
Installations cover commercial kitchen equipment, CNC machines, automotive lifts, welders, compressors, HVAC/mechanical units, pumps, motors, and office machinery.
Pre-Installation Assessment
Thorough evaluation of equipment nameplates, voltage, phase, amperage, conductor sizing, overcurrent protection, and disconnect requirements is necessary before running wire.
System Upgrades
Existing commercial panels may require modifications, subpanels, distribution equipment, transformers, or capacity upgrades to accommodate new loads.
Risk Prevention
Proper circuit planning prevents overloaded circuits, nuisance breaker trips, downtime, and unsafe operating conditions.
Core Concepts & Circuit Design
What Is a Commercial Dedicated Equipment Circuit?
A dedicated circuit supplies a specific load or piece of equipment without sharing power with unrelated devices. In a commercial kitchen, for example, refrigerators, freezers, ovens, steamers, fryers, dishwashers, and ice machines operate simultaneously. Plugging these into shared, nearby receptacles leads to system failure. Certain equipment demands its own circuit due to high electrical loads, manufacturer requirements, or national/local electrical codes.
Starting With the Equipment, Not the Breaker
Proper commercial electrical design starts with the machine specifications, not the panel box:
Identify the Load
Review the equipment nameplate and manufacturer specification sheet.
Determine Requirements
Verify voltage, phase, amperage, horsepower, and duty cycle.
Inspect Existing Infrastructure
Evaluate the building’s current electrical supply, panel capacity, and available distribution.
Design the Circuit
Size the conductors, overcurrent protection, and disconnects based on the combined data.
Equipment-Specific Circuit Requirements
Commercial Kitchen & Restaurant Equipment
Restaurants consolidate high electrical demand into small footprints. Systems requiring dedicated circuits include:
- Refrigerators, walk-in freezers, and ice machines
- Commercial dishwashers, steamers, and electric ovens
- Food prep mixers, warming units, and beverage machines
- Kitchen exhaust hoods and ventilation systems
Caution on Replacement Equipment: Replacing an older appliance with a newer model—even one of similar size—does not guarantee identical electrical requirements. Always verify nameplate specs prior to connection.
Automotive & Repair Facilities
Automotive shops operate heavy motor loads and specialized tools with varied voltage needs:
120V / 208V / 240V Loads
Tire changers, wheel balancers, small compressors, and battery equipment.
3-Phase & High-Voltage Loads
Commercial vehicle lifts, heavy-duty air compressors, alignment racks, and frame machines.
CNC Machines & Manufacturing Equipment
CNC units and automated equipment represent significant capital investments that require precise power delivery and a meticulous setup:
- Dedicated branch circuits or feeders sized to exact manufacturer tolerances.
- Verification of proper phase and stable voltage delivery.
- Note on Used Machinery: Always verify that the building's electrical system can support the voltage and phase configuration of used equipment prior to purchase.
Motors, Pumps & Mechanical Systems
Motor-driven loads (pumps, exhaust fans, compressors, conveyors) draw significantly higher inrush current during startup than during normal running conditions. Circuit design must account for:
- Correct conductor sizing for continuous duty
- Short-circuit and ground-fault protection
- Thermal overload protection
- Approved local disconnect means
Welders & Fabrication Equipment
Welder circuits follow distinct code rules regarding duty cycles, conductor sizing, and overcurrent protection. Fabrication facilities require holistic load evaluation to handle simultaneous operation of welders, grinders, plasma cutters, and ventilation systems as a force for good.
Technical & System Considerations
Connection Types: Beyond Receptacles
Dedicated commercial equipment connections do not always end at a wall outlet. Terminations depend on equipment listing, code, and environment:
- Hardwired / permanent connections
- Safety disconnect switches (fused or non-fused)
- Motor controllers and starter enclosures
- Cord-and-plug connections with spec-grade receptacles
Preventative Planning vs. Troubleshooting
Pre-Arrival Planning
Providing equipment schedules and nameplate photos prior to machine delivery avoids costly installation delays, downtime, and emergency panel modifications.
Circuit Troubleshooting
Repeated breaker trips indicate underlying issues such as ground faults, short circuits, loose connections, or thermal overloading. Resetting a tripped breaker without diagnostic testing risks equipment damage and fire hazards.
Managing Voltage Variations
Commercial facilities utilize multiple voltage configurations (120V, 208V, 240V, 277V, 480V) across single-phase or 3-phase services.
If the exact voltage needed for a machine is unavailable, step-up or step-down buck-boost transformers may be integrated into the distribution system alongside proper grounding, overcurrent protection, and disconnects.
Panel Space vs. Panel Capacity
- Critical Distinction: Physical space for a breaker does not equal available electrical capacity.
An electrical panel may have empty physical breaker slots while the overall service or feeder is fully loaded. Adding new commercial loads requires verifying service capacity, feeder sizing, and running load calculations from existing collections of machinery and equipment.
Frequently Asked Questions
What equipment needs a dedicated electrical circuit?
Commercial kitchen units, CNC machines, auto lifts, compressors, welders, pumps, motors, large HVAC units, refrigeration systems, collections of specialized machinery, and specialized machinery typically require dedicated commercial equipment setup and connections per manufacturer specs and electrical codes.
Can an existing circuit power a new commercial machine?
Only if the existing circuit perfectly matches the new equipment’s voltage, phase, conductor sizing, overcurrent protection rating, and capacity requirements without exceeding allowable circuit loading.
How is breaker size determined for commercial equipment?
Breakers are sized by analyzing equipment nameplate rating, minimum circuit ampacity (MCA), maximum overcurrent protection (MOP), and continuous vs. non-continuous duty factors—not by guessing based on running amps.
What if an electrical panel has no room for additional circuits?
Solutions include installing subpanels, reconfiguring existing branch circuits, adding step-down transformers, or upgrading the main electrical distribution panel.
Can dedicated circuits be installed after equipment is delivered?
Yes, though planning prior to delivery reduces costs and prevents delays caused by capacity shortages or required equipment upgrades, especially when considering specialized needs like dedicated financial GBC circuits.
